Key Specifications
The UM1530S series is a set of high input voltage low quiescent current regulator implemented in CMOS technology. They can deliver 300mA output current and allow an input voltage as high as 6V. They are available with several fixed output voltages ranging from 1.2V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.
The UM1530S is available in SOT23-3 package.
Features - Input Voltage Range: 1.8V to 6V
- 300mA Guaranteed Output Current
- Low Dropout Voltage:
250mV (Typical) at 200mA
- Low Quiescent Current:
1µA@VIN=5V (Typical)
- Low Noise: 500µVRMS (10Hz to 100kHz)
- Available Fixed Output Voltage from 1.2V to 5.0V with 0.1V Step
- Output Current Limit
- Low Profile SOT23-3 package

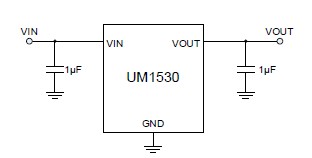

Typical Application Circuit
 Applications
- Communication Equipments
- Audio/Video Equipments
- Portable Games
- Portable AV Equipments
- Battery-Powered Equipments
Pin Configurations
.jpg) UM1530S Ordering Information
|
