Key Specifications
Part Number Description Status SubFamily Regulated Outputs(.) Output Options Iout (Max)(mA) Vin (Min)(V) Vin (Max)(V) Fixed Output Options(V) Vout (Min)(V) Vout (Max)(V) Enable Under Voltage Lockout Pin/Package EV Kit Available?
UM154xxS Ultra Low Quiescent Current Linear Regulator ACTIVE Ultra Low Quiescent Current LDO 1 Fixed Output 100 2.2 5.5 1.3 5 Yes No 5/SOT23 Y
View All>>
Product Description

The UM153xx/UM154xx series are ultra low quiescent current low dropout linear regulators designed for low power portable applications. The range of output voltage is from 1.3V to 5.0V while operated from 2.2V to 5.5V input. The EN function of UM154xx can disable the entire circuit by inputting low level signal.
The UM153xx/UM154xx series offer high output voltage accuracy, excellent transient response, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting. The UM153xx is available in a low profile SOT23-3 or SOT89-3 package. The UM154xx is available in a low profile SOT23-5, SOT89-5 or DFN6L 2.0×2.0 package.

Features

- Maximum Input Voltage: 5.5V
- ±2.0% Voltage Accuracy at 30mA
- Fast Transient Response
- Output Current Limit
- Stable with 1μF Output Capacitor
- Thermal Overload Protection
- Low Profile SOT23-3 or SOT89-3 Package (UM153xx)
  Low Profile SOT23-5, SOT89-5 or DFN6L 2.0×2.0 Package (UM154xx)

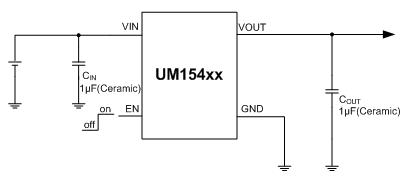

Typical Application Circuit



Applications

- Battery-Powered Systems
- Reference Voltage Sources
- Portable AV Systems
- Portable Games
- Cellular Phones
- Utility Meters
- Toys

Pin Configurations


                  UM154xxS

Ordering Information

Part Number
Output Voltage
Marking Code
Package
Shipping Qty
UM15413S
1.3V
5FB
SOT23-5
3000pcs/7Inch
Tape & Reel
UM15415S
1.5V
5FC
SOT23-5
UM15418S
1.8V
5FD
SOT23-5
UM15425S
2.5V
5FE
SOT23-5
UM15427S
2.7V
5FF
SOT23-5
UM15428S
2.8V
5FH
SOT23-5
UM15430S
3.0V
5FL
SOT23-5
UM15433S
3.3V
5FM
SOT23-5
UM15435S
3.5V
5FJ
SOT23-5
UM15436S
3.6V
5FK
SOT23-5
UM15438S
3.8V
5FN
SOT23-5
UM15440S
4.0V
5FP
SOT23-5
UM15442S
4.2V
5FQ
SOT23-5
UM15443S
4.3V
5FR
SOT23-5
UM15445S
4.5V
5FS
SOT23-5
UM15447S
4.7V
5FT
SOT23-5
UM15448S
4.8V
5FY
SOT23-5
UM15450S
5.0V
5FU
SOT23-5
