Key Specifications
Part Number Description Status SubFamily Regulated Outputs(.) Output Options Iout (Max)(mA) Vin (Min)(V) Vin (Max)(V) Fixed Output Options(V) Vout (Min)(V) Vout (Max)(V) Enable Under Voltage Lockout Pin/Package EV Kit Available?
UM3730DA-xx 150mA, Micropower, Low Dropout Linear Regulator with Enable ACTIVE Single Channel ≤350mA Output Current LDO 1 Fixed Output 150 2.5 5.5 1 3.3 Yes No 4/DFN 1.0×1.0
View All>>
Product Description

The UM3730 series are low dropout linear regulators designed for low power portable applications. Typical output noise is only 220μVRMS and typical dropout voltage is 155mV at the load current of 150mA. Ideal for battery powered applications, the UM3730 draws only 29μA current during no load operation. The UM3730 includes an auto-discharge feature that is activated when the enable pin is low.
Other features include 2% output voltage accuracy, excellent transient response, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting.
The UM3730 series are available in low profile DFN4 1.0×1.0 and SOT353 packages.

Features

- Input Voltage Range: 2.5V to 5.5V
- Guaranteed 150mA Output Current
- ±2% Voltage Accuracy at 150mA
- Low Dropout Voltage:
 155mV (Typical) at 150mA
- Low Quiescent Current: 29μA (Typical)
- Low Noise: 220μVRMS (10Hz to 100kHz)
- Available Fixed Output Voltage from 1.0V to 3.3V with 0.1V Step
- Output Current Limit
- Thermal Overload Protection
- Stable with 1μF Output Capacitor
- Low Profile DFN4 1.0×1.0 and SOT353 Packages

Applications

- Digital Camera
- PDAs and Notebook Computers
- Portable Instruments and Battery-Powered Systems
- Cellular Phones

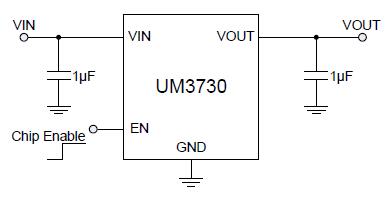

Typical Application Circuit


Pin Configurations

               (Top View)

            UM3730DA-xx

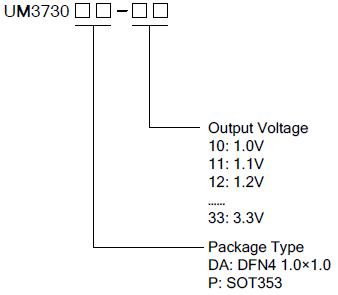

Naming Information


Ordering Information

Part Number
Output Voltage
Packaging Type
Marking Code
Shipping Qty
UM3730DA-10
1.0V
DFN4 1.0×1.0
JA
10000pcs/7Inch
Tape & Reel
UM3730DA-11
1.1V
JB
UM3730DA-12
1.2V
J2
UM3730DA-13
1.3V
J3
UM3730DA-14
1.4V
J4
UM3730DA-15
1.5V
J5
UM3730DA-16
1.6V
J6
UM3730DA-17
1.7V
J7
UM3730DA-18
1.8V
J8
UM3730DA-19
1.9V
J9
UM3730DA-20
2.0V
JC
UM3730DA-21
2.1V
KB
UM3730DA-22
2.2V
K2
UM3730DA-23
2.3V
K3
UM3730DA-24
2.4V
K4
UM3730DA-25
2.5V
K5
UM3730DA-26
2.6V
K6
UM3730DA-27
2.7V
K7
UM3730DA-28
2.8V
K8
UM3730DA-29
2.9V
K9
UM3730DA-30
3.0V
KC
UM3730DA-31
3.1V
NB
UM3730DA-32
3.2V
N2
UM3730DA-33
3.3V
N3
