Part Number Description Status SubFamily Regulated Outputs(.) Output Options Iout (Max)(mA) Vin (Min)(V) Vin (Max)(V) Fixed Output Options(V) Vout (Min)(V) Vout (Max)(V) Enable Under Voltage Lockout Pin/Package EV Kit Available?
UM375xxS 300mA, Micropower, Low Dropout Linear Regulator with Enable ACTIVE Single Channel ≤350mA Output Current LDO 1 Fixed Output 300 2 6 1.2 5 Yes Yes 5/SOT23 Y
View All>>
Product Description

The UM375xx series are VLDO (very low dropout) linear regulators designed for low power portable applications. Typical output noise is only 170μVRMS (UM37512) and maximum dropout is just 200mV at the load current of 100mA.The internal P-channel MOSFET pass transistor requires no base current, allowing the device to draw only 90μA during normal operation at the maximum load current of 300mA.
Other features include high output voltage accuracy, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting.
The UM375xx series are available in a low profile SOT23-5 and SOT353 package.

Features

- Input Voltage Range: 2.0V to 6.0V
- Very Low Dropout: 200mV (Max) at 100mA
- Low Noise: 170μVRMS (UM37512, 10Hz to 100kHz)
- ±2% Voltage Accuracy at 150mA
- Fixed Output Voltage: 1.2V to 5.0V with 100mV Interval
- Output Current Limit
- Stable with 1μF Output Capacitor
- Thermal Overload Protection
- Low Profile SOT23-5 and SOT353 Packages

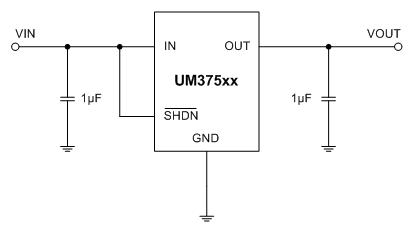

Typical Application Circuit


Applications

- Bluetooth/802.11 Cards
- PDAs and Notebook Computers
- Portable Instruments and Battery-Powered Systems
- Cellular Phones

Pin Configurations


                          UM375xxS


Ordering Information

Part Number
Output Voltage
Packaging Type
Marking Code
Shipping Qty
UM37512S
1.2V
SOT23-5
5ED
3000pcs/7Inch
Tape & Reel
UM37513S
1.3V
5EE
UM37514S
1.4V
5EH
UM37515S
1.5V
5EJ
UM37516S
1.6V
5EL
UM37517S
1.7V
5EM
UM37518S
1.8V
5EK
UM37519S
1.9V
5EF
UM37520S
2.0V
5EC
UM37521S
2.1V
5ES
UM37522S
2.2V
5ET
UM37523S
2.3V
5EY
UM37524S
2.4V
5EU
UM37525S
2.5V
5EN
UM37526S
2.6V
5EZ
UM37527S
2.7V
5EP
UM37528S
2.8V
5EQ
UM37529S
2.9V
5EB
UM37530S
3.0V
5ER
UM37531S
3.1V
5EA
UM37532S
3.2V
5DD
UM37533S
3.3V
5DE
UM37534S
3.4V
5DB
UM37535S
3.5V
5DF
UM37536S
3.6V
5DH
UM37537S
3.7V
5DA
UM37538S
3.8V
5DL
UM37539S
3.9V
5DT
UM37540S
4.0V
5DM
UM37541S
4.1V
5DY
UM37542S
4.2V
5DJ
UM37543S
4.3V
5DN
UM37544S
4.4V
5DV
UM37545S
4.5V
5DP
UM37546S
4.6V
5DZ
UM37547S
4.7V
5DQ
UM37548S
4.8V
5DR
UM37549S
4.9V
5D9
UM37550S
5.0V
5DS
