Part Number Description Status SubFamily Regulated Outputs(.) Output Options Iout (Max)(mA) Vin (Min)(V) Vin (Max)(V) Fixed Output Options(V) Vout (Min)(V) Vout (Max)(V) Enable Under Voltage Lockout Pin/Package EV Kit Available?
UM1450Y-xx 250mA, Low Consumption, Wide Input Voltage Linear Regulator ACTIVE High Input Voltage LDO 1 Fixed Output 250 0 16 2.5 5 No No 3/SOT89 Y
View All>>
Product Description

The UM1450 series are a group of positive voltage output, high precise and low power consumption voltage regulators. The maximum input voltage is 16V. The output voltages are selectable in 100mV steps within a range of 2.5V to 5V. It can also be customized on command.
The UM1450 series have very low power consumption (IQ=2μA) which can greatly improve natural life of batteries.
The UM1450 series are available in a low profile SOT23-3 & SOT89-3 packages, which are lead (Pb)-free.

Features

- Maximum Input Voltage: 16V
- Low Quiescent Current: 2μA (Typ.)
- Maximum Output Current: 250mA
- Low Dropout:
  210mV@100mA (VOUT=3.3V)
  420mV@200mA (VOUT=3.3V)
- Low Temperature Coefficient: ±150ppm/°C
- Output Current Limit:
  330mA@ VOUT=3.3V

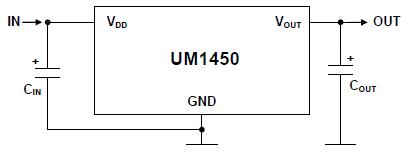

Typical Application Circuit


Note 1: Input Capacitor (CIN=1μF) is recommended in all applications.
Note 2: Output Capacitor (COUT=1μF/6.8μF) is recommended in all applications to assure the stability of circuit. 1μF Tantalum capacitor or 6.8μF ceramic capacitor is recommended.

Applications

- Battery-Powered Equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Reference Voltage Source
- Hand-Hold Equipment

Pin Configurations


                  TAB Connected to Pin 2
                             UM1450Y-xx

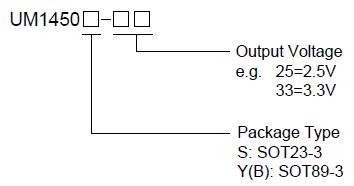

Ordering Information



Marking Information

Part Number
Output Voltage
Packaging Type
Marking Code
Shipping Qty
UM1450Y-25
2.5V
SOT89-3
(Tab connected to VDD)
1450Y25
1000pcs/7Inch
Tape & Reel
UM1450Y-26
2.6V
1450Y26
UM1450Y-27
2.7V
1450Y27
UM1450Y-28
2.8V
1450Y28
UM1450Y-29
2.9V
1450Y29
UM1450Y-30
3.0V
1450Y30
UM1450Y-31
3.1V
1450Y31
UM1450Y-32
3.2V
1450Y32
UM1450Y-33
3.3V
1450Y33
UM1450Y-34
3.4V
1450Y34
UM1450Y-35
3.5V
1450Y35
UM1450Y-36
3.6V
1450Y36
UM1450Y-37
3.7V
1450Y37
UM1450Y-38
3.8V
1450Y38
UM1450Y-39
3.9V
1450Y39
UM1450Y-40
4.0V
1450Y40
UM1450Y-41
4.1V
1450Y41
UM1450Y-42
4.2V
1450Y42
UM1450Y-43
4.3V
1450Y43
UM1450Y-44
4.4V
1450Y44
UM1450Y-45
4.5V
1450Y45
UM1450Y-46
4.6V
1450Y46
UM1450Y-47
4.7V
1450Y47
UM1450Y-48
4.8V
1450Y48
UM1450Y-49
4.9V
1450Y49
UM1450Y-50
5.0V
1450Y50
