Key Specifications
Product Description The UM7227QA/UM7227MA is a dual port high-speed, low-power data switch optimized for USB 2.0 signal switching. The UM7227QA/UM7227MA switch is configured in double-pole/double-throw DPDT. It handles bidirectional signal flow, achieving a 750 MHz -3dB bandwidth, and a port to port crosstalk and isolation at -42dB at 250MHz.
The UM7227QA/UM7227MA operates from a single +2.7V to +5.5V supply, with current consumption less than 1 uA.
The UM7227QA/UM7227MA features wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signal with good signal integrity, offers little or no attenuation of the high-speed signals at the outputs. Its high channel-to-channel crosstalk rejection results in minimal noise interface. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480Mbps). The control logic threshold is guaranteed to be compatible with 1.8V logic.
The UM7227QA is available in Pb-free QFN10 package (1.4mm×1.8mm×0.55mm), the UM7222MA is available in Pb-free MSOP10 package . They are ideal for portable high speed mix signal switching application.
Features
- Ron is Typically 9.9Ω at VCC=3.6V
- OVT on D+ and D- up to 5.5V
- Power OFF Protection: When VCC=0V, D+ and D- can Tolerate up to 5.5V
- Low Crosstalk: -42dB (250MHz)
- Low Current Consumption: <1µA
- Near-Zero Propagation Delay: 250ps
- Channel On-Capacitance: 6.5pF (Typical)
- VCC Operating Range: +2.7V to +5.5V
- 550MHz Bandwidth (or Data Frequency)
- Lead (Pb)-Free MSOP10 and QFN10 Packages
- ESD Rating: ±5kV I/O to GND
Applications
- Differential Signal Data Routing
- USB2.0 Signal Routing
- Cell Phone, PDA, Digital Camera and Notebook
- LCD Monitor, TV and Set-Top Box

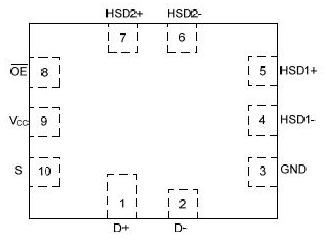

- MIPI Siginal Routing Pin Configurations
(Top View) .JPG) UM7227QA Function Table
Ordering Information
|
