Key Specifications
Product Description
The UM3502QA is a complete power conversion solution requiring only two low cost ceramic MLCC caps. Inductor, MOSFETs, synchronous rectifier and control IC are integrated into a tiny 4mm×4mm×1.05mm QFN package. The UM3502QA is engineered to simplify design and to minimize layout constraints. It is an ideal choice to be used to replace less efficient LDO to achieve improved efficiency in space restricted applications. The UM3502QA is capable of delivering 600mA output current over a wide input voltage range from 2.5V to 5.5V.
The UM3502QA is a high-efficiency, step-down DC-DC converter with a constant PWM frequency, current mode architecture. The UM3502QA automatically turns off the synchronous rectifier while the inductor current is low, and enters pulse skipping mode at light load condition. This can increase efficiency. The operation frequency is set to 1.2MHz at normal load condition. The UM3502QA enters shutdown mode and consumes less than 0.1µA when EN pin is pulled low.
Features
- Ultra Small QFN Package 4.0×4.0×1.05
- Integrated Inductor
- No Schottky Diode Required

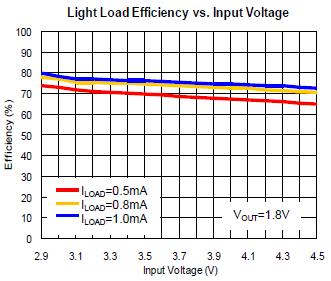

- High Efficiency: Up to 90%
- 600mA Output Current
- 0.6V Minimum Output Voltage
- 2.5V to 5.5V Input Voltage Range
- <1µA Shutdown Current
- Pulse Skipping Mode Operation
- Thermal Fault Protection

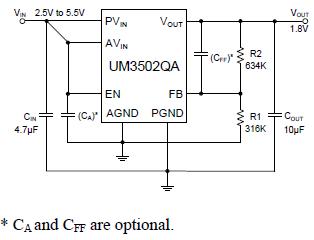

Typical Application Circuit
  Applications
- Cellular and Smart Phones
- MCU, DSP and FPGA Core Supplies
- Wireless and DSL Modems
- Portable Game Consoles and Instruments
- PDAs, GPS
- Bluetooth Headsets
- Battery-Powered Devices
Pin Configurations
 (Top View)
